versoclave® - lab pressure reactor

versoclave® pressure reactor — **pressure reactor - versoclave® - interchangeable steel and Hastelloy reaction vessel Fast Action Closure, Reactor Lift**

Laboratory pressure reactor system - for pressure reactions in metal pressure vessels

Reactor volume: 0.5 to 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20 °C to +250 °C
Material: stainless steel, Hastelloy®, tantalum

Other materials, pressures & temperatures are available

This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.

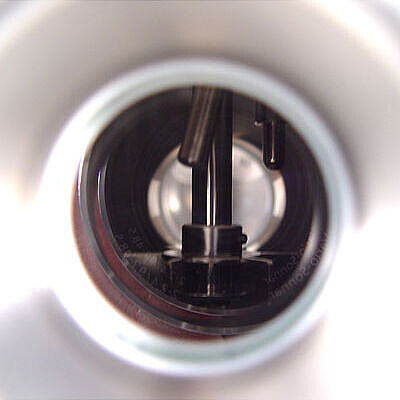

The stainless steel or Hastelloy® reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.

The modular setup of the versoclave® system allows changing or upgrading for new tasks at any time.

With fast action closure and reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids, solids, gas and others like catalyst baskets are available – contact us to define the right setup for your specific need.

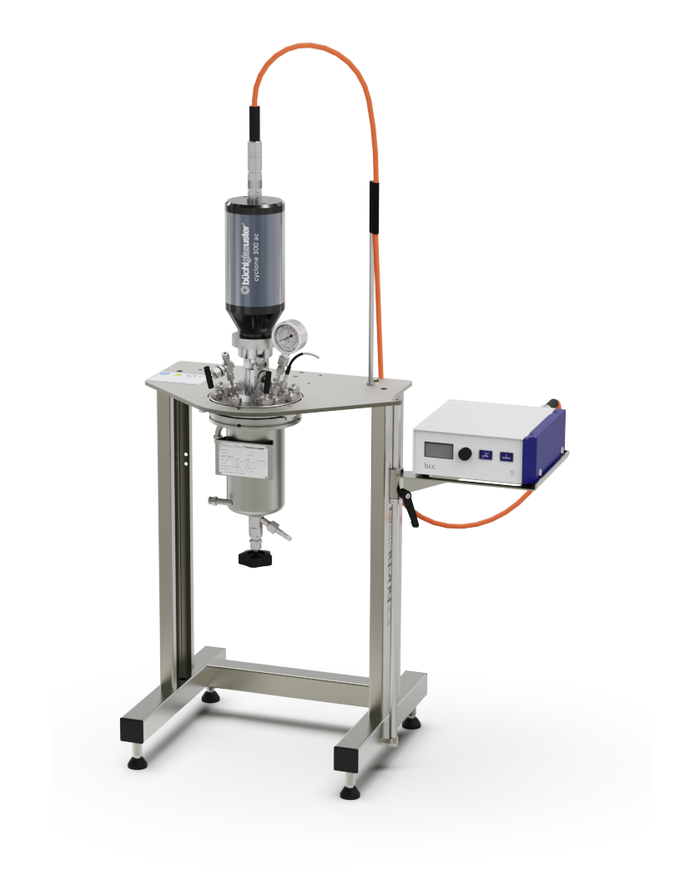

Standard package

Stand with open access from all sides

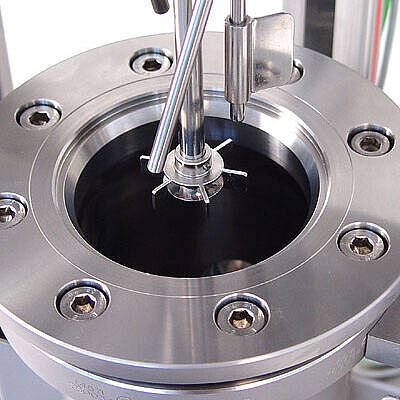

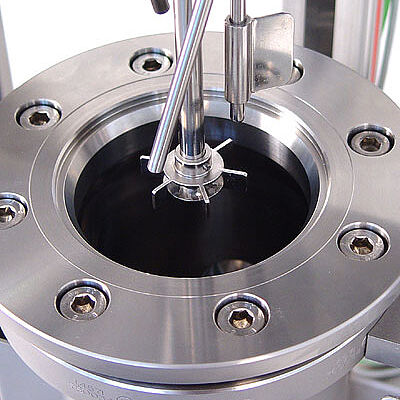

Pressure vessel in steel / Hastelloy® with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve

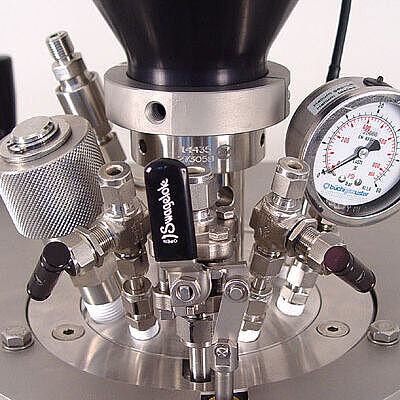

Cover plate with 7 openings and standard setup:
Swagelok fittings with bursting disc, manometer and 2 valves
Stirrer drive cyclone 300 with integrated high torque magnetic coupling, incl. controller cc300
Tools and spare parts

Standard options

Reactor lifting / lowering device

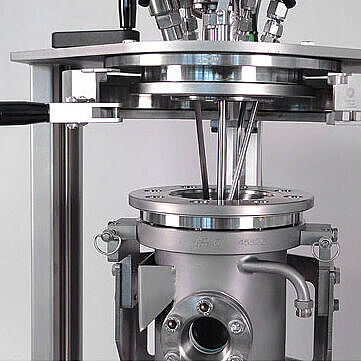

Safety Fast Action Closure for vessel
ATEX stirrer drive
Metal-free (inert version) with ceramic stirrer drive
Electric heating / water cooling
Measure and control systems
Wide range of accessories
200 bar version

Type 3 Steel / Hastelloy pressure reactor

Type 3
Metal
0.5, 1.0, 2.0, 3.0, 5.0 liter
250°C
60 bar

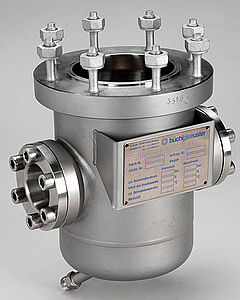

Type 4 Steel / Hastelloy® pressure reactor with sight glass

Type 4
Metal/Sight glass
1.0, 2.0, 3.0, 5.0 liter
250°C
60 bar

Type 3E Steel / Hastelloy pressure reactor

Type 3E
Metal
0.5, 1.0, 2.0, 3.0, 5.0 liter
250°C
60 bar

Type 4E Steel / Hastelloy pressure reactor with sight glass

Type 4E
Metal/Sight glass
1.0, 2.0, 3.0, 5.0 liter
250°C
60 bar

btc

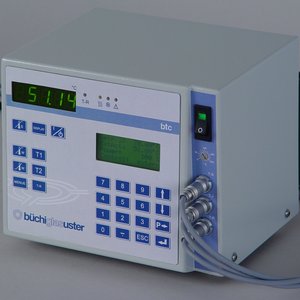

PID temperature controller
for Type 3E and 4E vessels

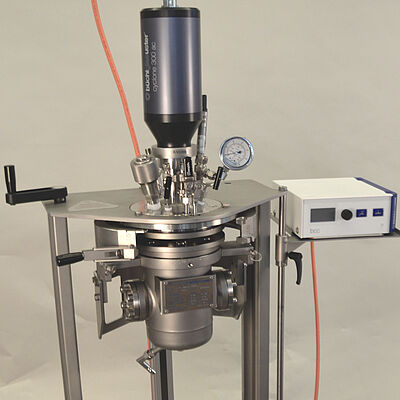

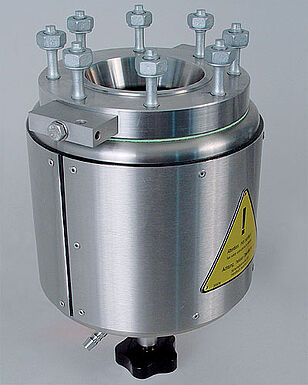

versoclave® pressure reactors in various designs

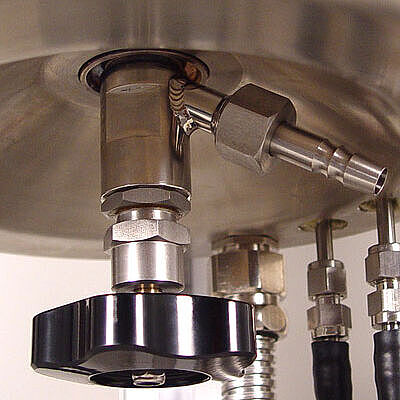

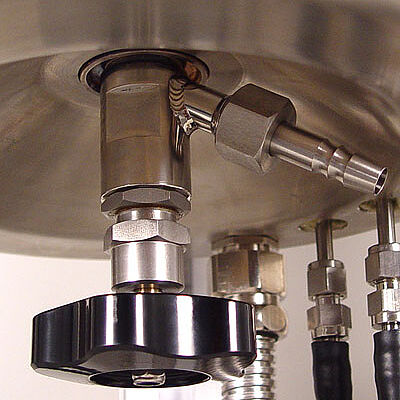

Drain valve — **Reactor bottom drain valve**

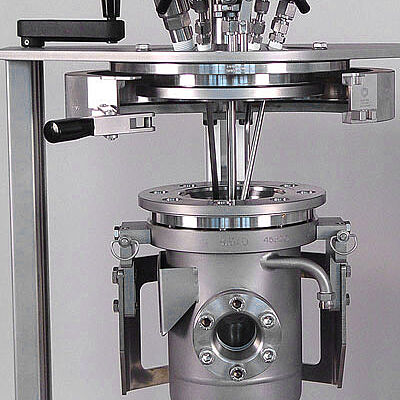

Vessel lift — **easy lifting / lowering of heavy reactors**

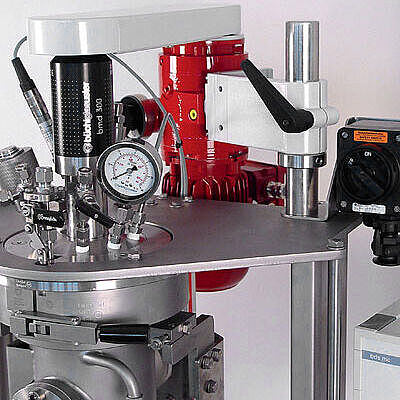

**ATEX agitator with magnetic coupling**

Customer references

**Buchi versoclave system at ADFAST Corp.**

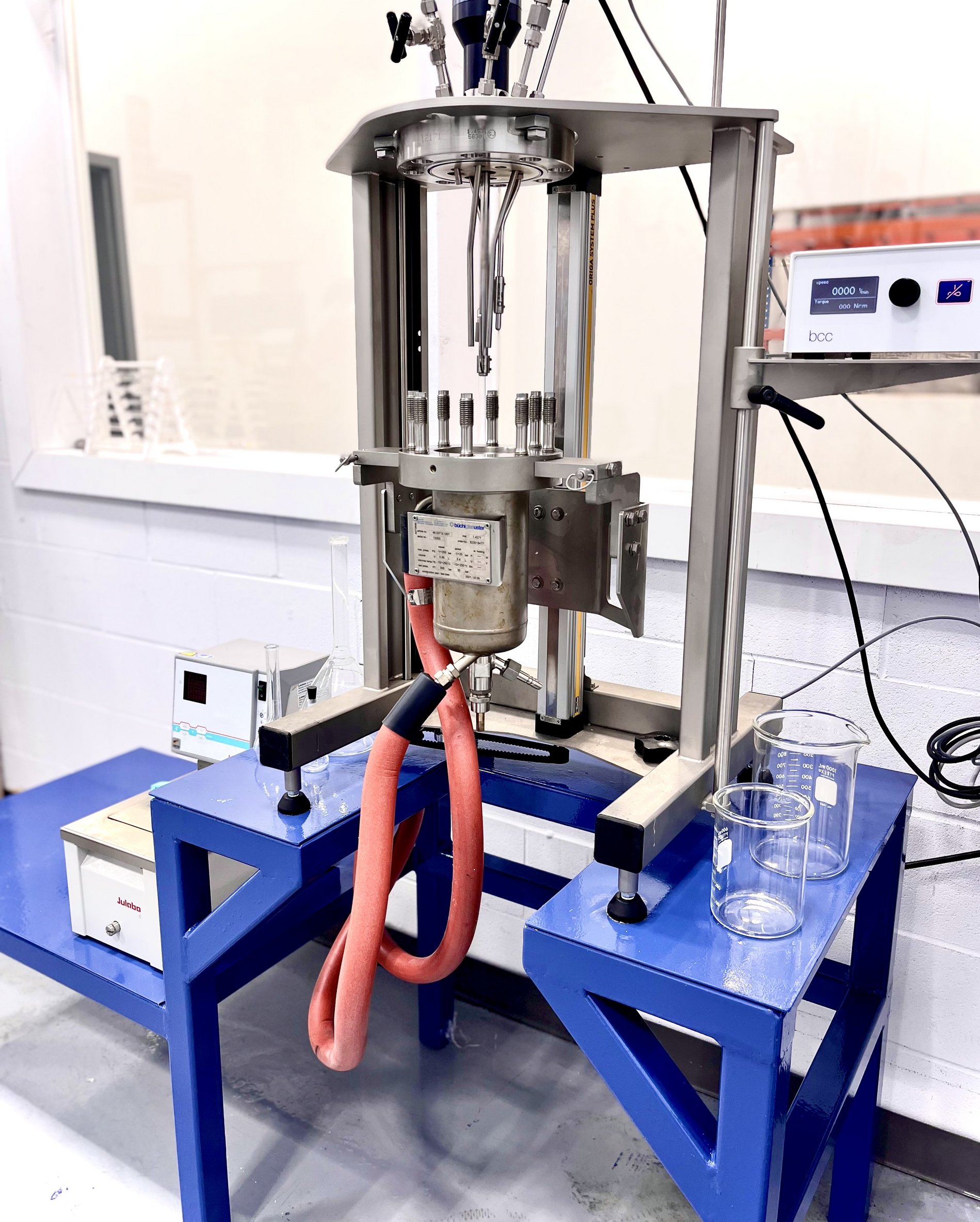

“We are very satisfied with our Buchi versoclave system which allows us to perform various types of reactions (controlled and free radical polymerizations, hydrogenation…) thanks to the pressure and temperature ratings as well as the high torque stirrer. We have two reactor sizes (1L and 3L vessels) that are easily switchable and that we frequently use to study the influence of the reaction medium volume. The safety features, the ease of use, and the reactor lift are additional assets that make this apparatus indispensable within our R&D department.”
