tinyclave - small pressure reactor
tinyclave pressure reactor
for glass- and steel vessel
with optinal PTFE insert
Laboratory pressure reactor system
Reactor volume: 10 to 25 ml
Pressure: -1 (FV) to +10 / 100 bar
Temperature: -20 °C to +200 / 300 °C
Material: Borosilicate glass 3.3, stainless steel, Hastelloy®, PTFE
Other materials, pressures & temperatures are available.
This pressure reactor system is designed for the use of interchangeable pressure vessels in glass, steel, Hastelloy®, Teflon. Safety features guarantee safe reactions under pressure.
The glass pressure reactors ensure high resistance against acids, while allowing visual process control and monitoring.
A wide range of accessories is available – talk to us to define the right setup for your specific need.
Standard package

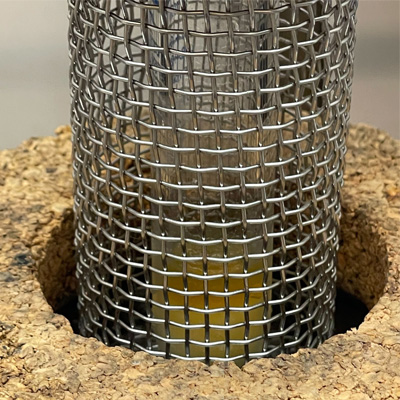

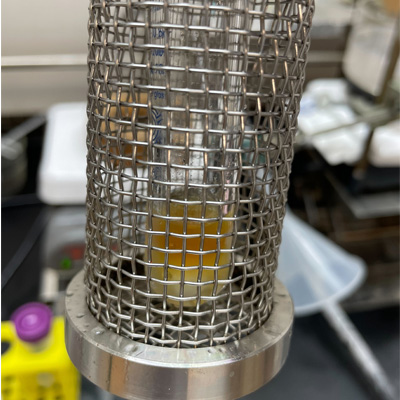

- Vessel holder with protective mesh
- Glass pressure vessel
- Union nut
- Cover plate with 2 openings and standard setup
- Swagelok® fittings with bursting disc, manometer and 1 valve
- Tools and spare parts
Examples

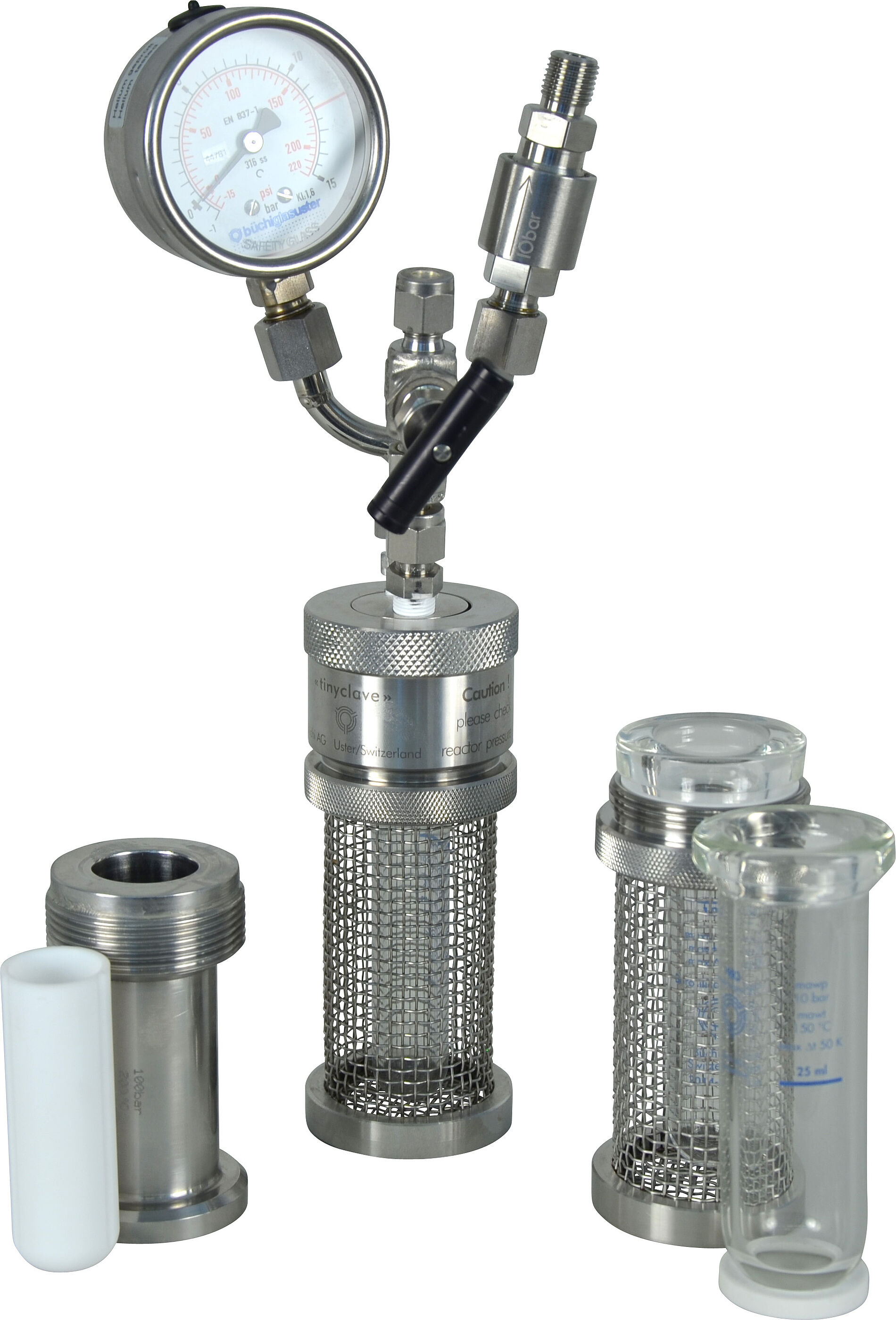

tinyclave, with rupture disc

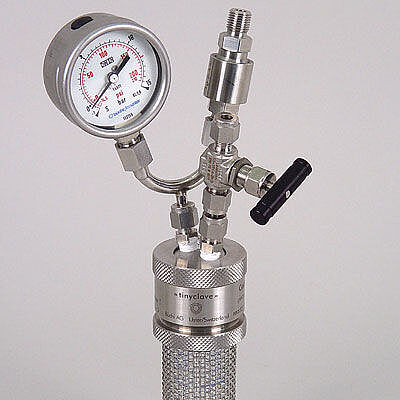

pressure gauge, gas- liquid inlet

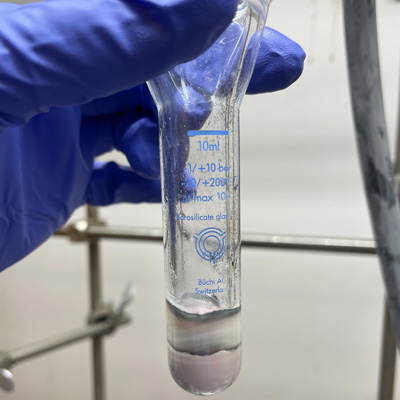

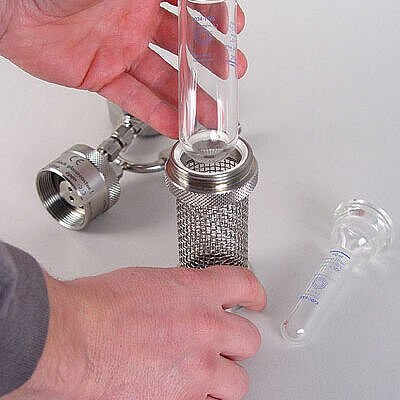

Interchangeable glass pressure vessel
10, 25 ml
