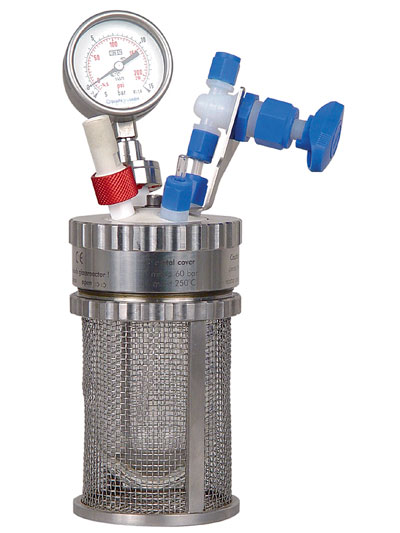

miniclave inert - inert pressure reactor
miniclave inert- metal free glass pressure reactor
Inert laboratory pressure reactor system
Reactor volume: 100 - 300 ml
Pressure: -1 (FV) to +10 bar
Temperature: -20 °C to +150 °C
Material: Borosilicate glass 3.3, PTFE, PFA, FEP
Special executions are available
This metal - free pressure reactor system is designed for the use of interchangeable glass pressure vessels. All product touched parts are made of inert (non-metallic) materials. Safety features guarantee safe reactions under pressure.
The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring.
A wide range of accessories is available – talk to us to define the right setup for your specific need.
Standard package
- Vessel holder with protective mesh
- Glass pressure vessel
- Union nut
- Cover plate with 4 openings and standard setup
- Swagelok® fittings with bursting disc, manometer, 1 valve and thermowell
- Tools and spare parts
Examples

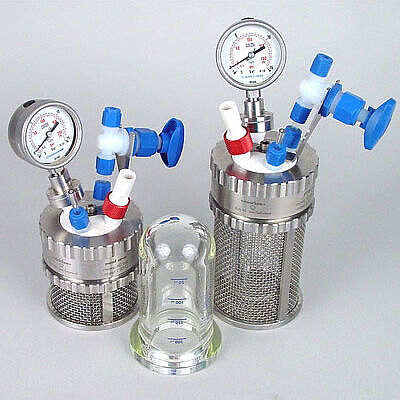

miniclave inert with interchangeable glass pressure vessels

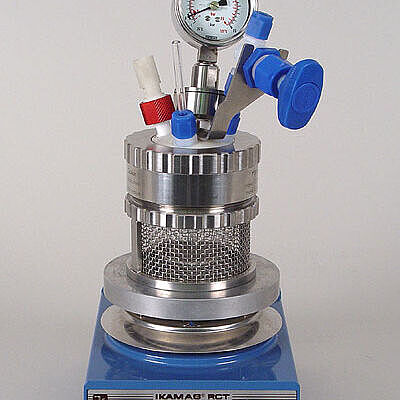

miniclave inert 50 ml glass reactor on hot plate stirrer

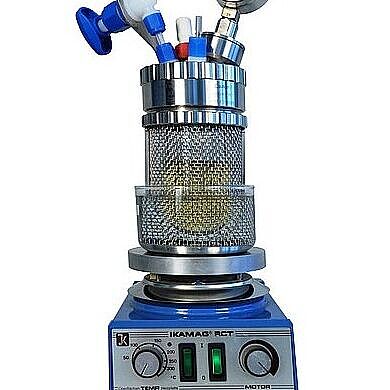

miniclave inert glass pressure vessel
in wather bath, hotplate stirrer
