Mobile gas scrubber (volume scrubbing liquid) : 6, 10, 20, 50, 100 liter
Mobile gas scrubber (column diameter): DN 50, 70, 100, 150, 200
Stationary gas scrubber (volume scrubbing liquid) : Customized according to process requirements
Stationary gas scrubber (column diameter): DN50 up to DN600
Pressure: -1.0 (FV) to +0.5 bar
Temperature exhaust gas: -60 °C to +200 °C
Temperature scrubbing liquid: 0 °C to +80 °C
Material: Borosilicate glass 3.3, PTFE, ETFE
Other setups are available

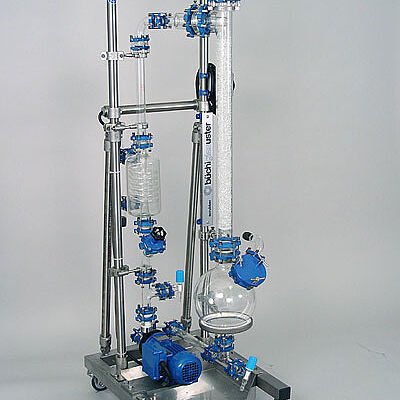

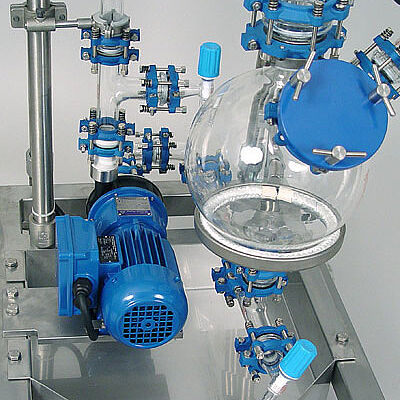

Gas scrubbers are used to neutralize corrosive exhaust gas from reactors. Depending on the scrubbing liquid, they can be used for caustic or acidic vapors. Gas scrubbers are equipped with an ETFE lined, corrosion resistant magnetic coupled pump.

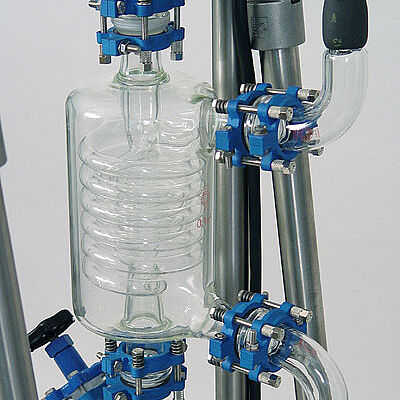

The flow rate of the scrubbing liquid can be controlled with the built-in reducing valve. The scrubbing liquid temperature is maintained by a spiral cooler in the liquid circuit.
