High containment filter

Filtration vessel: 30 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C to +200 °C
Material: Glove made of EPDM

For other materials and characteristics, see nutsche filters

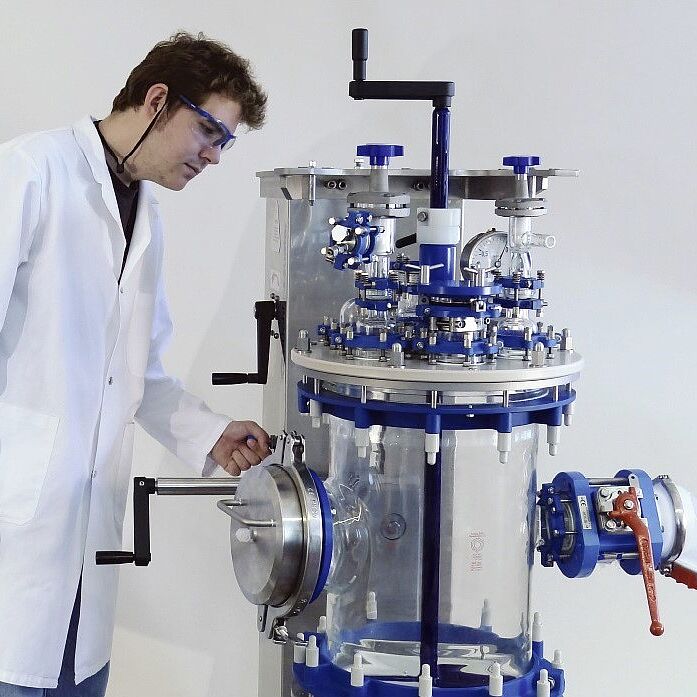

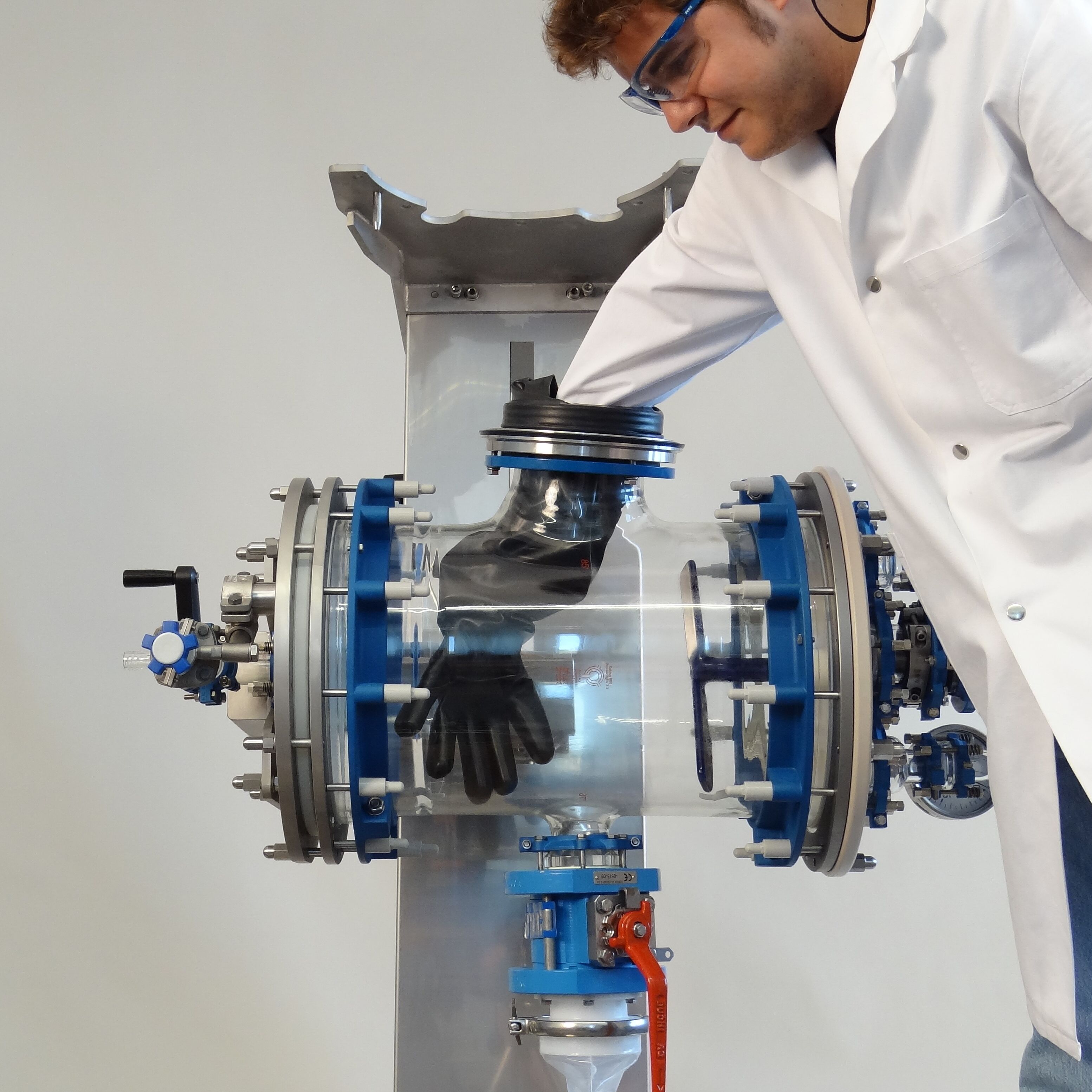

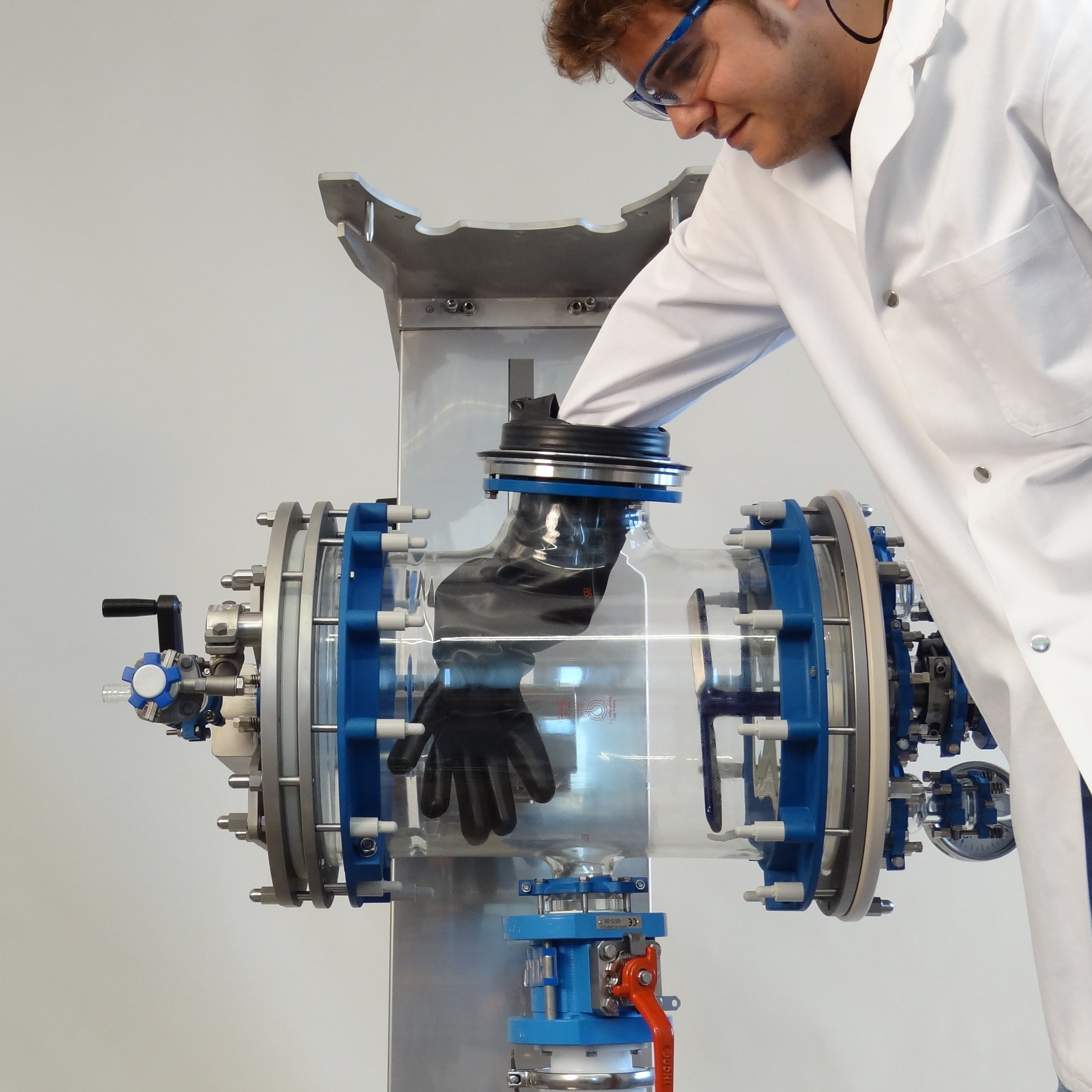

Buchi high containment nutsche filters allow for controlled filtration with a contained discharge by wiping out with the fixed glove (made of EPDM) into a bag system. The filter vessel can easily be lifted, lowered and tilted due to its versatile and solid stand.


Enhanced safety features:
The HC Filter is engineered with high containment capabilities to protect both the operator and the product during filtration processes. The use of an EPDM glove for discharge ensures minimal exposure to harmful substances, making it ideal for handling highly potent active pharmaceutical ingredients (HPAPIs).

Versatile application range:
The HC Filter is versatile, accommodating a wide range of applications, including crystallization, peptide synthesis, ion exchange, and chromatography. Its ability to perform filtration under a protective atmosphere makes it suitable for sensitive or reactive compounds.

Precision and control:
The filter's design allows for precise control of pressure and temperature, ensuring optimal conditions for filtration, separation, and purification processes. This precision is crucial for maintaining the integrity of delicate compounds during processing.

Ease of operation:

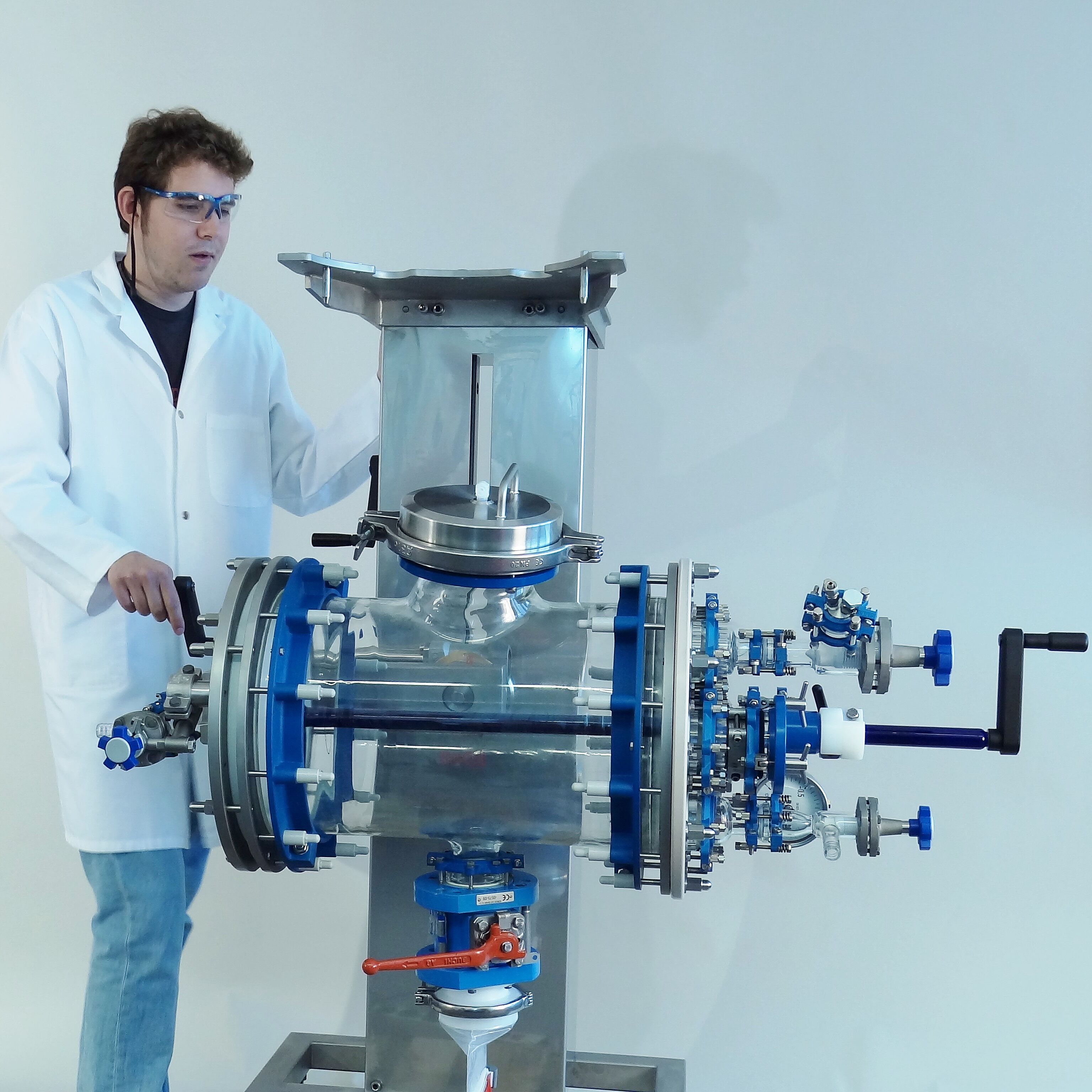

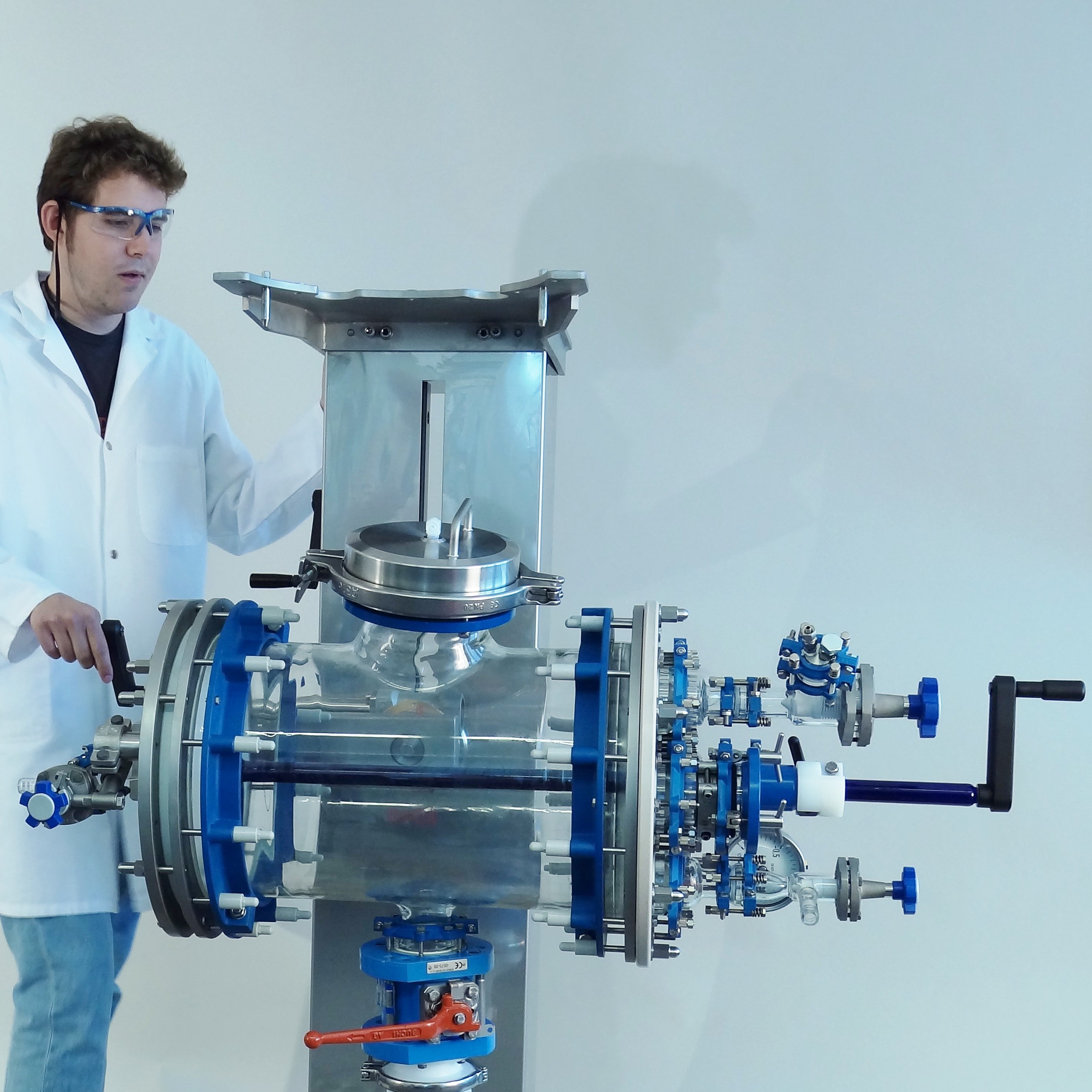

The HC Filter's design includes a user-friendly lifting, lowering, and tilting mechanism, which simplifies the handling and cleaning process. This reduces downtime and increases productivity in the lab or production environment.

Compact and robust design:
Despite its high-performance capabilities, the HC Filter maintains a compact and robust design, making it suitable for both small-scale laboratories and larger production facilities. Its solid stand provides stability during operation, ensuring consistent results.

Compatibility with auxiliary equipment:
The HC Filter can be easily integrated with other Buchi systems, such as temperature control units, gas scrubbers, or mixing vessels, to create a complete and tailored filtration solution for various chemical processing needs.
