Glass reactors & process equipment

Buchi glass reactors and process equipment guarantee best process performance in labs, pilot plants / kilo labs and production. From laboratory synthesis through scale-up to production.

Buchi apparatus and systems are built with Swiss made highest quality borosilicate glass components and various other components made of highly corrosion-resistant materials such as glass-lined steel, fluoropolymers and Hastelloy®. – Buchi is your competent partner.

Reactor systems 5 - 250 liter

miniPilot®

Glass reactor: 5 to 15 liter
Pressure: -1.0 (FV) to +1.0 bar
Temperature: -60 °C (optional -90 °C) to +200 °C

Sturdy multipurpose glass reactor for small volumes

midiPilot®

Glass reactor: 20 to 30 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C (optional -90 °C) to +200 °C

Sturdy multipurpose glass reactor for small volumes

chemReactor CR

Glass / glass lined -
steel reactor: 15 to 250 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C (optional -90 °C) to +200 °C

High performance reactor systems for API synthesis, small scale production and pilot plant

chemReactor BR

Glass reactor: 15 to 60 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C (optional -90 °C) to +200 °C

Basic glass reactor systems for API synthesis, small scale production and pilot plant

chemReactor GR

Glass reactor: 15 to 60 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C (optional -90 °C) to +200 °C

Glass reactor systems for API synthesis, small scale production and pilot plant

Process equipment > 250 liter

glass lined steel reactor with distillation glass overhead

Production scale reactors systems & plants

Glass lined reactor: 250 to 10000 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C to +200 °C

Reactors and plants for commercial chemical production

Nutsche filters 10 - 300 liter

Nutsche filters

Filtration vessel: 10 to 300 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C to +150 °C (200 °C)

Nutsche filters for reactors and pilot plants

High Containment Glass Filter for Pilot Plant

High containment filter

Filtration vessel: 30 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60 °C to +200 °C

Filtration with contained discharge - fast and simple

Stirred nutsch filter, solid phase reactor SPPS

Stirred nutsche filters (SPPS)

Filtration vessel: 10 to 300 liter
Pressure: -1.0 (FV) to +0.5 / 1.0 bar
Temperature: -60 °C to +200 °C

Process filtration / solid phase peptide synthesis (SPPS)

Pressure filters

Filtration vessel: 5 - 20 liter
Pressure: -1.0 bis +6.0 bar
Temperature: -60 °C bis +250 °C

For process filtration under pressure

Filter reactors for pilot plants and kilo labs

Buchi FR 10, FR 30 & FR 50

Filtration vessel: 10, 30, 50 liter
Pressure FR 10: -1.0 (FV) to +1.0 bar
Pressure FR 30, FR 50: -1.0 (FV) to +0.5 bar
Temperature: -60/+200 °C

Buchi FR filter reactor product line

Mixing vessel, storage tanks 10 - 400 liter

10 – 400 liters glass tanks, jacketed glass reactor, mixing vessel

Mobile pilot plant units, stationary storage tanks

Mixing vessels (jacketed glass vessel): 10 to 100 liter
Mixing vessel (non-jacketed glass vessel): 10 to 200 liter
Storage tanks (non-jacketed glass vessel): 10 to 400 liter

Mixing vessels, jacketed glass reactors, glass tanks, jacketed glass vessel

Gas scrubber 10 - 100 liter

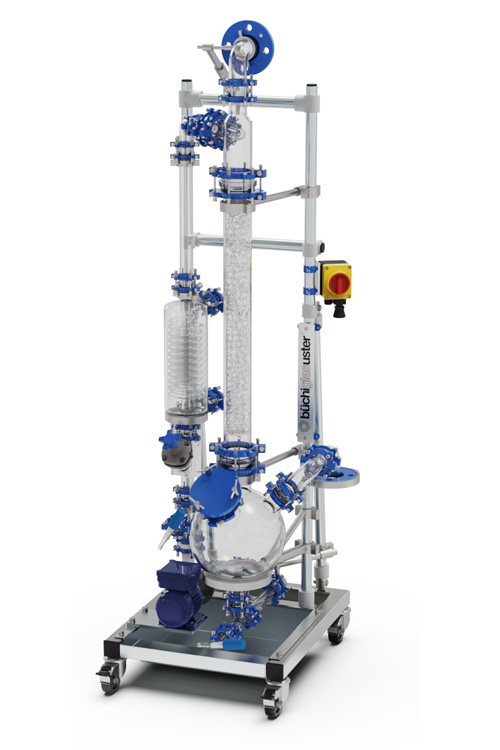

mobile gas scrubber, gas stripping columns

Mobile gas scrubber / stationary columns

Mobile scrubbers: 10 to 100 liter
Stationary glass columns: up to DN600
Pressure: -1.0 (FV) to +0.5 bar
Temperature exhaust gas: -60 °C to +200 °C

Mobile scrubbers / DN50 - DN600 columns for stripping of exhaust gas
